DLMULTI-024-200W
triac/0/1-10V (5 in 1) Dimmable Driver

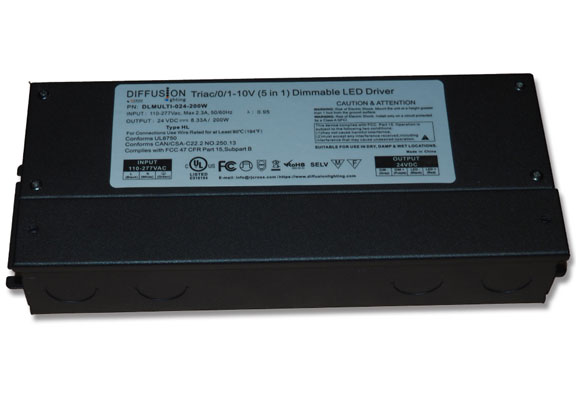

Diffusion DLMULTI-024-200W

Diffusion DLMULTI-024-200W is a Dimmable LED Driver that works with Forward / Reverse phase, ELV, Triac or 0-10V Dimmers.

Features

• Protection from short circuit, over current and over voltage
• Internal self reset mini breakers
• Compatible with virtually every style dimmer
• Flicker-free ~ 20,000 Hz
• Indoor/Outdoor
• High Efficiency
• Working Temp : -40 ~ +85° C
• Wet location rated

Specifications

• Input Voltage : 110-277 VAC
• Output Voltage : 24 VDC
• Output Current : 8.33A
• Dimming Range : 0-100%
• Wattage : 200W

*0% with select dimmers only*

Dimensions

9.3" L x 4.1" W x 1.7" H
238mm L x 105mm W x 45mm H

KO (I.D.):
6 x 0.8" (Sides)
