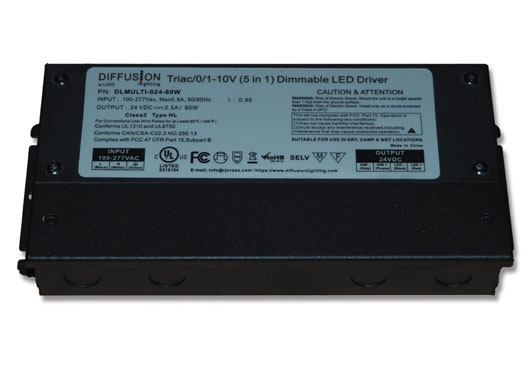

DLMULTI-024-60W
triac/0/1-10V (5 in 1) Dimmable Driver

Diffusion DLMULTI-024-60W

Diffusion DLMULTI-024-60W is a Dimmable LED Driver that works with Forward / Reverse phase, ELV, Triac or 0-10V Dimmers.

Features

• Protection from short circuit, over current and over voltage
• Internal self reset mini breakers
• Compatible with virtually every style dimmer
• Flicker-free ~ 20,000 Hz
• Indoor/Outdoor
• High Efficiency
• Working Temp : -40 ~ +85° C
• Wet location rated

Specifications

• Input Voltage : 100-277 VAC
• Output Voltage : 24 VDC
• Output Current : 2.5A
• Dimming Range : 0-100%
• Wattage : 60W

*0% with select dimmers only*

Dimensions

6.8" L x 3.5" W x 1.0" H
175mm L x 90mm W x 25mm H

KO (I.D.):
6 x 0.5" (Sides) *Standard 1/2" connectors won't fit*
2 x 0.8" (Back)

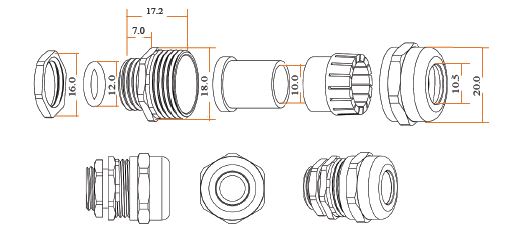

Connector

Comes with two Connectors
*Only takes up to 14/2 loomex or 14/3 sjoow*
