DL010-024-100VD
0-10V Dimmable Driver

Diffusion DL010-024-100VD

Diffusion DL010-024-100VD is a 0-10V constant voltage dimmable driver for custom LED and architectural lighting applications.

Features

• Protection from short circuit, over current and over voltage
• IP67 waterproof, design for indoor and outdoor installation

Specifications

• Output Voltage : 24 VDC
• Rated Current : 0~4.0A
• Dimming Functions : 0-10V
• Dimming Range : 0-100%
• Wattage : 100W

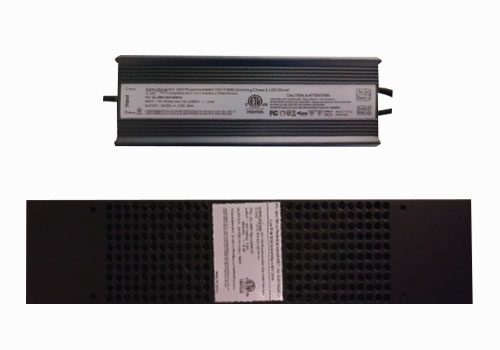

Dimensions

Driver :
9.00" L x 2.75" W x 1.63" H
229mm L x 70mm W x 42mm H

Enclosure :
14.88" L x 3.10" W x 2.19" H
378mm L x 79mm W x 56mm H
