DL010-024-200VD
0-10V Dimmable Driver

Diffusion DL010-024-200VD

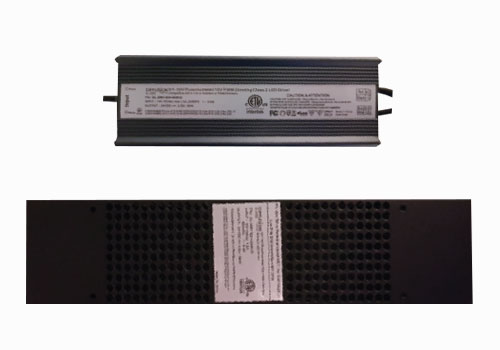

Diffusion DL010-024-200VD is a 0-10V constant
voltage dimmable driver.

Features

• Protection from short circuit, over current and over voltage
• IP67 waterproof, design for indoor and outdoor installation
• Wiring junction boxes built in for line and load

Specifications

• Output Voltage : 24 VD
• Output Current : 8.3A
• Dimming Functions : 0-10V
• Dimming Range : 0-100%
• Wattage : 200W

Dimensions

Driver :
10.10" L x 3.10" W x 1.75 " H
257mm L x 79mm W x 45mm H

Enclosure :
16.13" L x 3.38" W x 2.25" H
410mm L x 86mm W x 57mm H
