DL010-024-30VD
0-10V Dimmable Driver

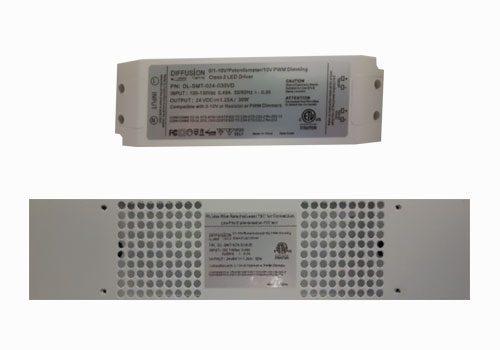

Diffusion DL010-024-30VD

Diffusion DL010-024-30VD is a 0-10V constant
voltage dimmable driver.

Features

• Protection from short circuit, over current and over voltage
• IP20 design for indoor installation

Specifications

• Output Voltage : 24 VDC
• Rated Current : 0~1.25A
• Dimming Functions : 0-10V
• Dimming Range : 0-100%
• Wattage : 30W

Dimensions

Driver :
7.10" L x 2.38" W x 1.38" H
181mm L x 61mm W x 35mm H

Enclosure :
13.75" L x 3.18" W x 1.5" H
350mm L x 79mm W x 38mm H
