DL010-024-60VD
0-10V Dimmable Driver

Diffusion DL010-024-60VD

Diffusion DL010-024-60VD is a 0-10V constant
voltage dimmable driver.

Features

• Protection from short circuit, over current and over voltage
• IP20 design for indoor installation

Specifications

• Output Voltage : 24 VDC
• Rated Current : 0~2.5A
• Dimming Functions : 0-10V
• Dimming Range : 0-100%
• Wattage : 60W

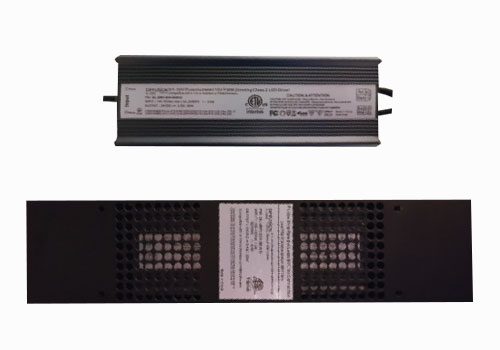

Dimensions

Driver :
7.80" L x 2.75" W x 1.70" H
198mm L x 70mm W x 43mm H

Enclosure :
13.75" L x 3.10" W x 2.25" H
350mm L x 79mm W x 57mm H
