eM150S24DC
Magnetic Driver

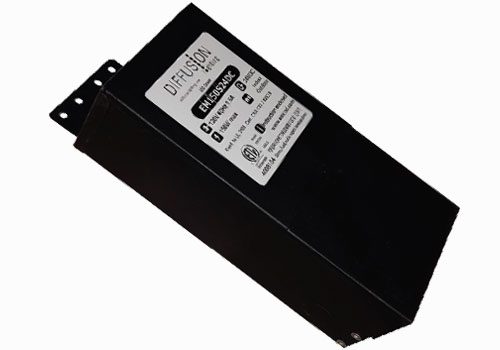

Diffusion EM150S24DC

Diffusion EM150S24DC is a magnetic low-voltage 24V DC dimmable LED driver designed for architectural and commercial lighting applications.

Features

• Nema 3R for Indoor/Outdoor use
• Uses an assortment of dimmers including CFL/LED style
• Built in divider eliminating the need for a box
• Standard 3/8"KO
• Max load rated
• Mini breakers on the line and the low sides

*See dimmer compatibility list*

Specifications

• Input Voltage : 120V 60Hz
• Max Input Current at Full Load : 1.5A
• Output Voltage Without Load : 25.3 VDC
• Output Voltage : 23.5 VDC
• Max Wattage : 150W
• Max Output Current : 6.2A
• Efficiency : 88%
• Load Regulation : 0%
• Ripple : 0
• Wattage : 150W

Dimensions

8.79" L x 4.15" W x 3.41" H
223.26mm L x 105.41mm W x 86.61mm H
