ML10S24DC
Magnetic Driver

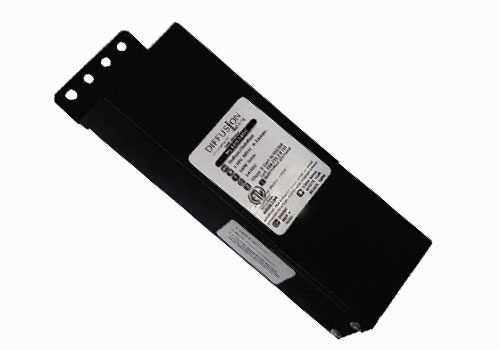

Diffusion ML10S24DC

Diffusion ML10S24DC is a magnetic low voltage,
24DC dimmable LED driver.

Features

• Nema 3R for Indoor/Outdoor use
• Uses an assortment of dimmers including CFL/LED style
• Built-in divider simplifies installation, eliminating the need for an additional junction box in LED lighting setups.
• Standard 3/8" KO
• Max load rated

*See dimmer compatibility list*

Specifications

• Input Voltage : 120V 60Hz
• Max Input Current at Full Load : 0.11A
• Output Voltage Without Load : 26 VDC
• Output Voltage : 24 VDC
• Max Wattage : 10W
• Max Output Current : 0.4A
• Efficiency : 83%
• Load Regulation : 0%
• Ripple : 0
• Wattage : 10W

Dimensions

8.00" L x 1.60" W x 2.11" H
203.20mm L x 40.65mm W x 53.60mm H
