DLELD-024-200W
Triac Dimmable Driver

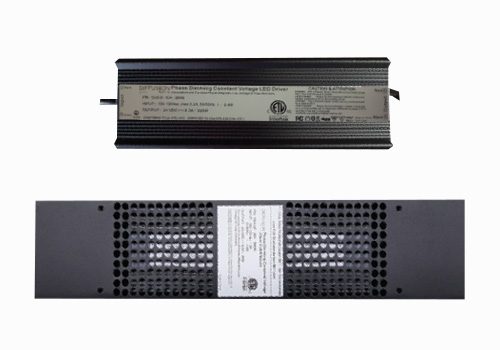

Diffusion DLELD-024-200W

Diffusion DLELD-024-200W is a triac dimming
constant voltage electric driver.

Features

• Compatible with various dimmers
• Metal enclosure included

*See dimmer compatibility list*

Specifications

• Output Voltage : 24 VDC
• Output Current : 8.3A
• Input Voltage : 100 - 130V AC
• Max Wattage : 200W

Dimensions

Driver :
10.13" L x 3.10" W x 1.75" H
257mm L x 78mm W x 45mm H

Enclosure :
16.13" L x 3.38" W x 2.32" H
410mm L x 86mm W x 59mm H
