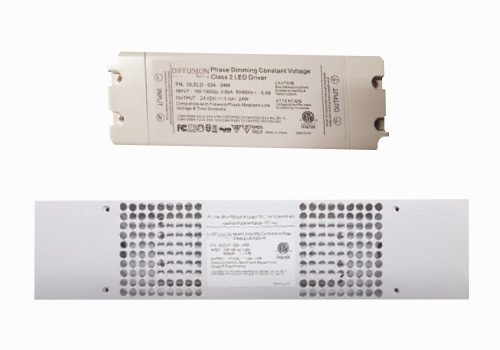

DLELD-024-24W
Triac Dimmable Driver

Diffusion DLELD-024-24W

Diffusion DLELD-024-48W is a triac dimming constant voltage electronic driver used in commercial lighting systems.

Features

• Compatible with various dimmers
• Metal enclosure included

*See dimmer compatibility list*

Specifications

• Output Voltage : 24 VDC
• Output Current : 1A
• Input Voltage : 100 - 130V AC
• Max Wattage : 24W

Dimensions

Driver :
6.13" L x 2.25" W x 0.75" H
156mm L x 57mm W x 19mm H

Enclosure :
13.75" L x 3.13" W x 1.50" H
350mm L x 80mm W x 38mm H
