DLELD-024-48W
Triac Dimmable Driver

Diffusion DLELD-024-48W

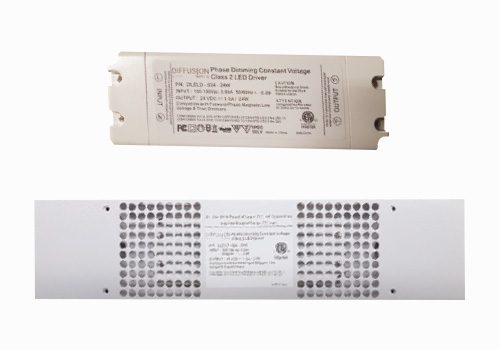

Diffusion DLELD-024-48W is a triac dimming constant voltage electronic driver for industrial lighting.

Features

• Compatible with various dimmers
• Metal enclosure included

*See dimmer compatibility list*

Specifications

• Output Voltage : 24 VDC
• Output Current : 2A
• Input Voltage : 100 - 130V AC
• Max Wattage : 48W

Dimensions

Driver :
7.00" L x 2.38" W x 1.00" H
178mm L x 61mm W x 25mm H

Enclosure :
13.75" L x 3.13" W x 1.50" H
350mm L x 80mm W x 38mm H
